- Sundown Audio X-10 V.3 D2 10" 2000W RMS Dual 2-Ohm X Series Subwoofer Power Handling: RMS = 2000 watts Voice Coil Configuration: Dual 2-ohm Vented magnetic gap Optimized high-velocity pole vent Innovative high-velocity vented frame spacer ring
- Black Aluminum 3” voice coil former for superior heat dissipation High Temperature Round-Wire CCAW voice coil with high-temp black adhesive All Aluminum Coil that is ~30% longer Large aluminum faraday ring (Magnet ID) Spring Loaded Terminals
- Stitched-On Double-XL Tinsel Leads to prevent fatigue and failure Mega-Roll Surround Technology High strength, custom tooled & patented cast aluminum frame Optimized for small ported & band-pass enclosures Recommended Ported Enclosure: 1.50 ft^3
- Displacement: 0.23 ft^3 Depth: 9" Outside Diameter 11.65" Cut-Out: 10.01" Recommended Tuning: 32hz Recommended Port Area: 24in^2 Weight: 58LB
- RE (Ohms) 3.2 FS (Hz) 40.208 VAS (L) 9.352 Qes 0.528 Qms 2.842 Qts 0.445 Le (mH) BL (NA) 21.509 Mms (Grams) 302.089 Cms (uM/N) 51.867 Sens (dB @ 1w/1m) 82.5dB

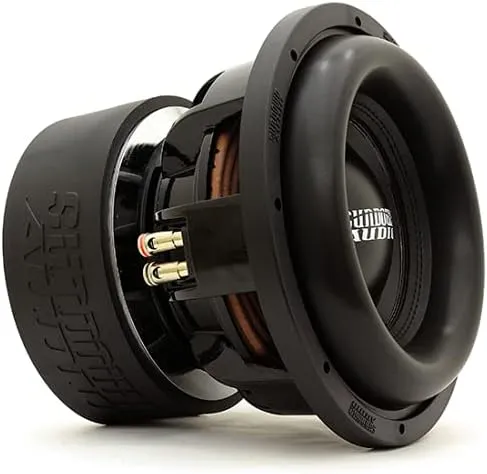

X-10 V.3 D2 - Sundown Audio 10" 2000W RMS Subwoofer
Features & Specifications:
Xmax = 30mm one-way by 70% BL
RMS Power = 2000-watts
* Vented magnetic gap
* Optimized high-velocity pole vent
* Innovative high-velocity vented frame spacer ring
Black Aluminum 3” voice coil former for superior heat dissipation
High Temperature Round-Wire CCAW voice coil with high-temp black adhesive
** The 18” model with optional tooled Sundown Frame uses a 4-Layer Flat Wire / All Aluminum Coil that is ~30% longer
Large aluminum faraday ring (Magnet ID)
Spring Loaded Terminals
Stitched-On Double-XL Tinsel Leads to prevent fatigue and failure
Mega-Roll v.2 Surround Technology
High strength, custom tooled & patented cast aluminum frame
Optimized for small ported & band-pass enclosures
* -- These features combine to create the optimized coil ventilation system.
Specifications:
DC Resistance (Re): 3.80 Ω
Resonance Frequency (Fs): 38.2 Hz
Equivalent Volume (Vas): 9.0 L
Electrical Q Factor (Qes): 0.53
Mechanical Q Factor (Qms): 4.93
Total Q Factor (Qts): 0.48
Voice Coil Inductance (Le): 2.56 mH
Force Factor (BL): 24.8 NA
Moving Mass (incl. Air Load) (Mms): 356.4 g
Suspension Compliance (Cms): 0.05 mm/N
Sensitivity: 81.6 dB 1w / 1m
Box Recommendations:
Sealed: N/A
Ported: 1.50 cu. ft.
Displacement: 0.21 cu. ft.
Depth: 8.88 in
Outside Diameter: 11.65 in
Cutout Diameter: 10.01 in
Recommended Tuning: 32 Hz
Recommended Port Area: 24 sq. in
