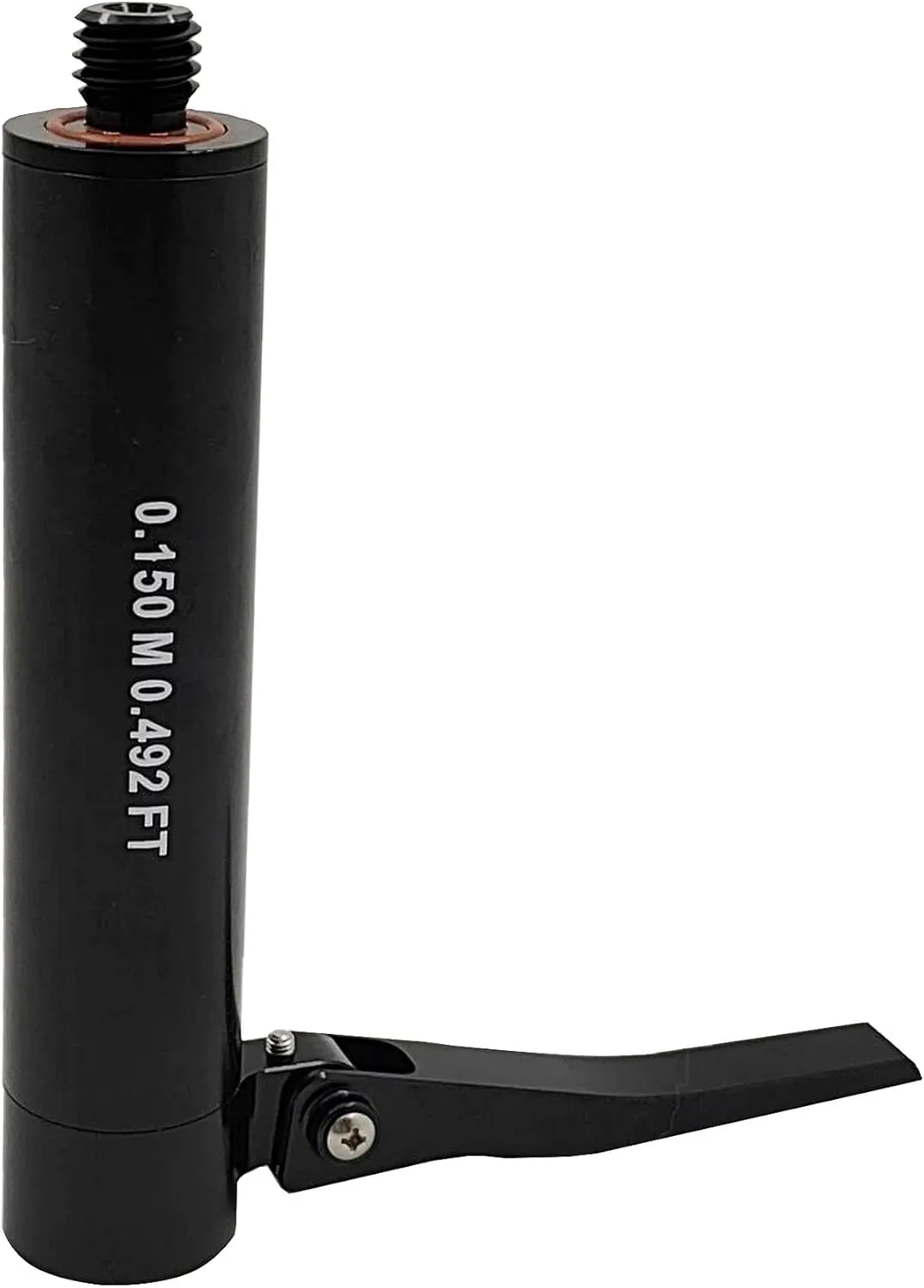

- The extension pole for trimble R10 R12 includes a height measurement lever with a defined measurement point
- R10 / R12 height extension (0.15m/ 0.492 FT) w/ 5/8"-11 female & male Thread
- Base Station Height Adapter for Trimble R10 R12 R12i GNSS Receivers
- The base station extension pole increase the height of the receiver to allow clearance for the 450 MHz internal radio antenna and also allows for easy and accurate measurement of the base station antenna height.
89846-00 RTK Base Station Extension for Trimble R10
Compatibility:
Designed for Trimble R10, R12, R12i, SPS985, SPS986, R780 GNSS receivers.
Function:
Simplifies base station setup and height measurements for GPS receivers or antennas with 5/8 x 11 industry-standard threads.
Height & Threads:
Features a 0.15m (0.492FT) height extension. The top has an external 5/8"×11 thread, and the bottom has an internal 5/8"×11 thread.
Unique Design:
Comes with a height measurement lever and rod, providing a defined measurement point. This not only simplifies setup but also enables accurate base station antenna height measurement.
Material:
Constructed from high-quality aluminum alloy.
Purpose:
Increases receiver height, allowing clearance for the 450 MHz internal radio antenna.
