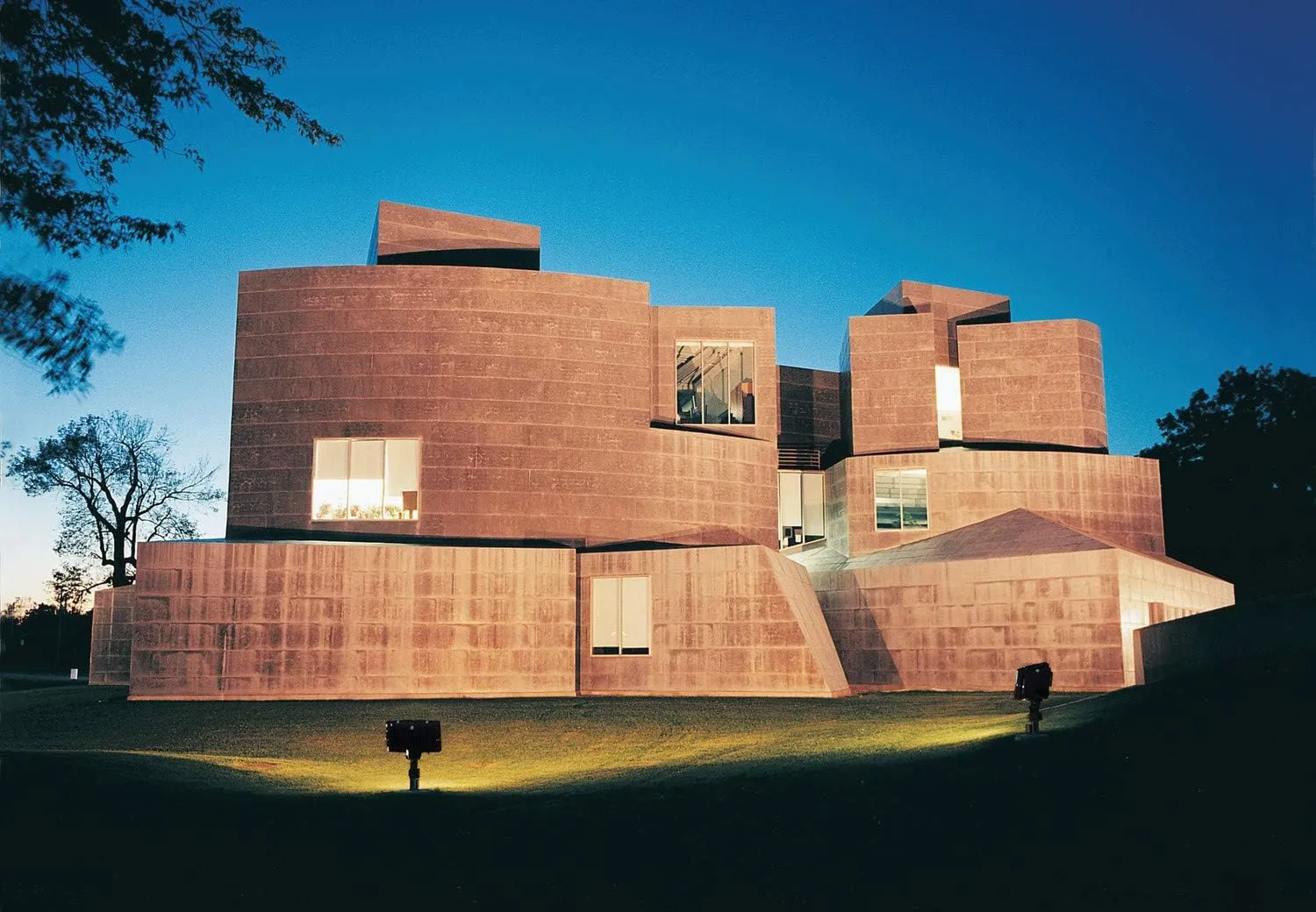

• INTENDED USE - The TFX3 LED floodlight is designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing metal halide or high pressure sodium lighting. The TFX3 is ideal for replacing up to 400W HID luminaires in parking lots, signage, yards, and other floodlighting applications. TFX luminaires deliver a uniform, wide flood distribution.
• CONSTRUCTION - The TFX3 LED floodlight features a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life. The light engines and housing are IP66 rated, and sealed against moisture or environmental contaminants.
• ELECTRICAL - Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100, 00 hours. Color temperature (CCT) is 4000K with minimum CRI of 70. Electronic drivers ensure system power factor>90% and THD <20%. All luminaires have 10kV surge protection

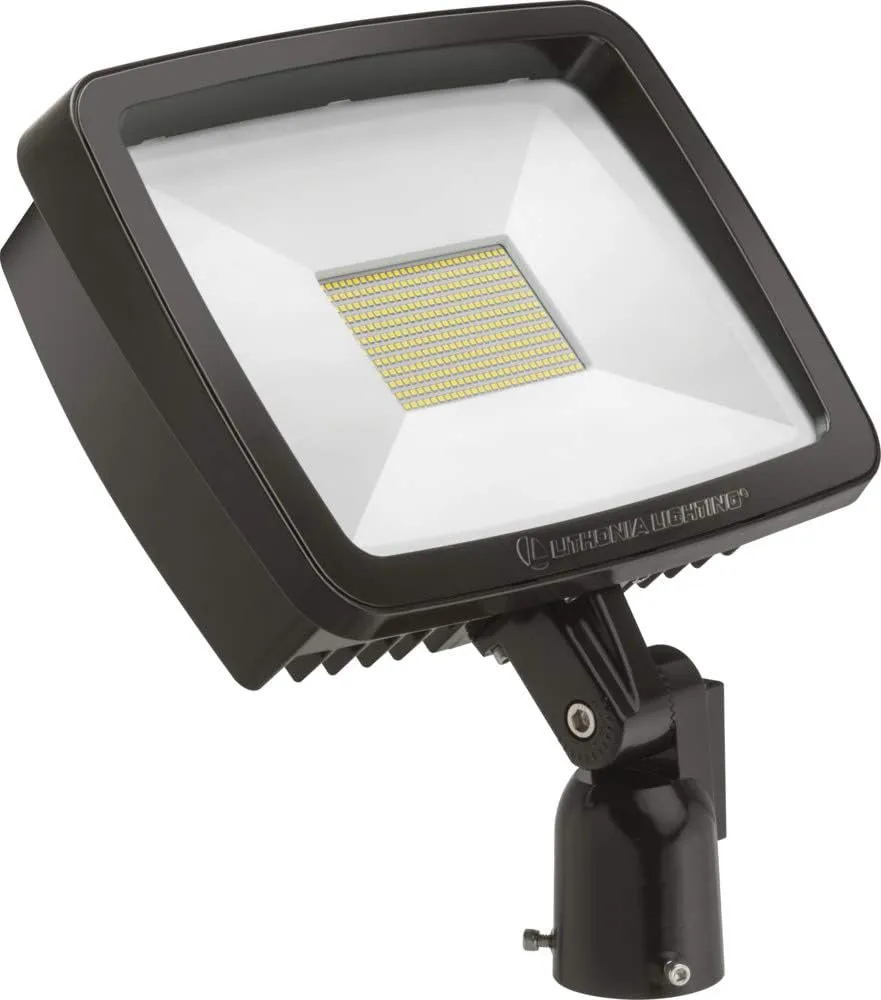

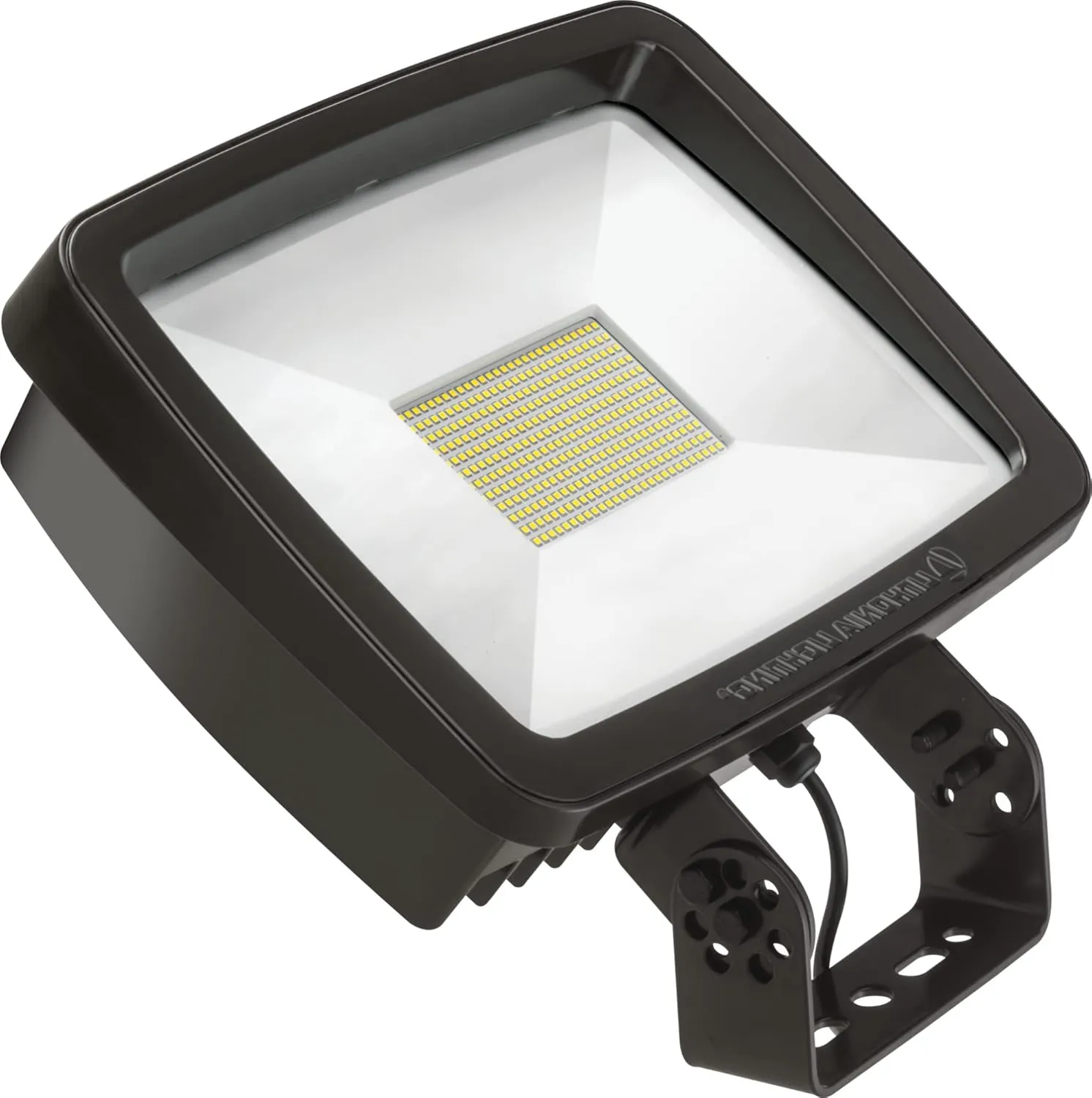

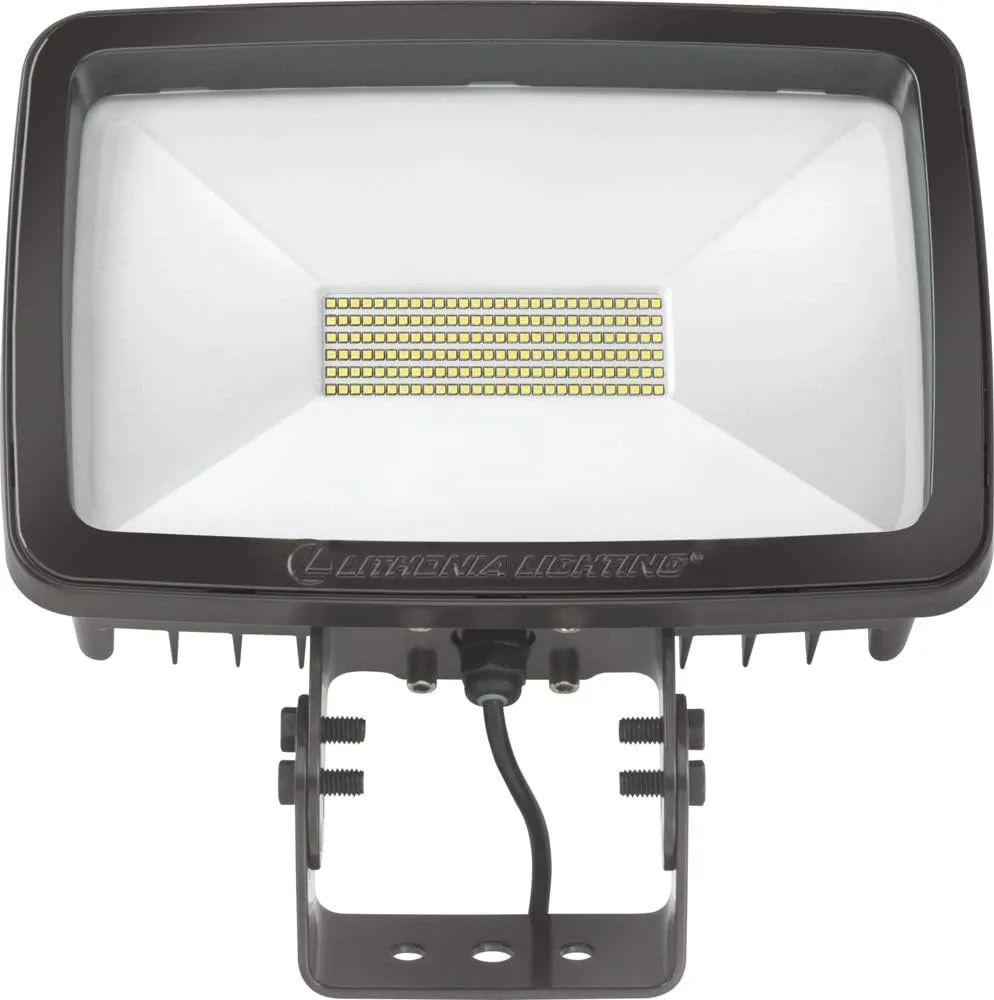

• INSTALLATION - The integral slip fitter option (IS) mates with standard 2 3/8” tenons for pole-top mounting. The yoke mount (YK) option allows mounting to solid surfaces and has a 30” SO cord. TFX luminaires are suitable for aiming in any orientation. TFX is rated for installation on ground. Can be tilted from 0° horizontal facing downwards, up to 180° horizontal facing upwards
