- INTENDED USE - The TFX2 LED floodlight is designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing metal halide or high pressure sodium lighting. The TFX2 is ideal for replacing up to 250W HID luminaires in parking lots, signage, yards, and other floodlighting applications. TFX luminaires deliver a uniform, wide flood distribution.
- CONSTRUCTION - The TFX2 LED floodlight features a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life. The light engines and housing are IP66 rated, and sealed against moisture or environmental contaminants.
- ELECTRICAL - Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,00 hours. 4000K and 5000K color temperature (CCT) options with minimum CRI of 70. Electronic drivers ensure system power factor>90% and THD <20%. All luminaires have 6kV surge protection.
- INSTALLATION - The integral slip fitter option (IS) mates with standard 2 3/8” tenons for pole-top mounting. The yoke mount (YK) option allows mounting to solid surfaces and has a 30” SO cord. TFX luminaires are suitable for aiming in any orientation. TFX is rated for installation on ground. Can be tilted from 0° horizontal facing downwards, up to 180° horizontal facing upwards.

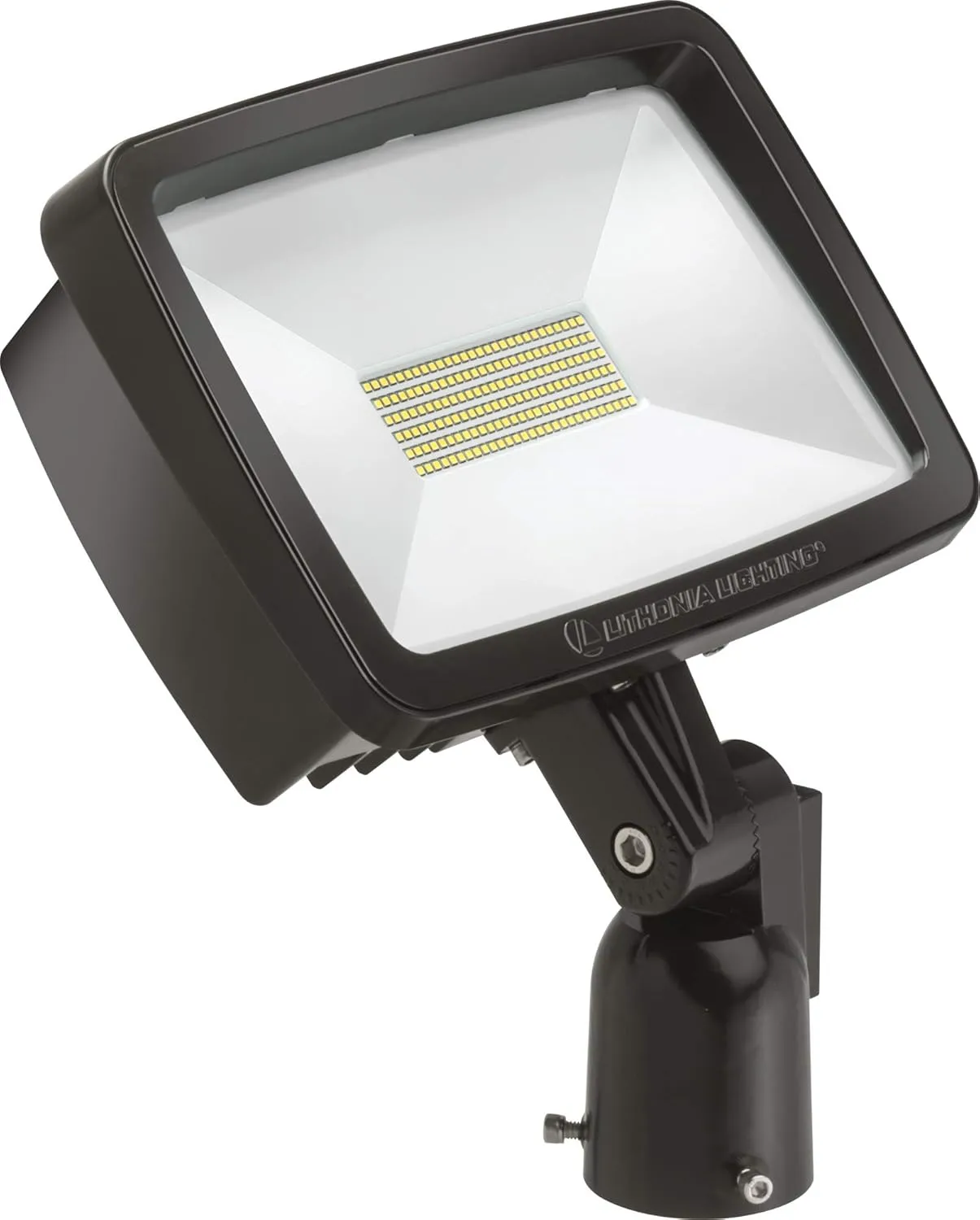

The TFX2 LED flood luminaire is a cost-effective, energy-efficient, long-life solution for replacing metal halide or HPS floodlights. Delivering 13,200 lumens, the TFX2 can replace up to 250W metal halide while saving 68% in energy costs. Reliable IP66 construction and excellent LED lumen maintenance will ensure a long service life; avoiding the multiple lamp changes of the metal halide luminaires they replace. The TFX2 is available with integral slip fitter and yoke mounting options. The slip fitter can be used for installation on 2 3/8” outer diameter tenons.
