- 4 Pole 12 Slot Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Efficiency
- Precision balanced rotor,smoothness for best reliability and maximum RPM
- Universal fit,fits all 1/16th brushless cars-multi-mounting system for M2.5 screws
Features:
★ 4 Pole 12 Slot Hi-torque Motor Design
★ CNC Machined 6061 T6 Billet Aluminum Heatsink Can
★ High Purity Copper Windings Maximizes Efficiency
★ High RPM ABEC5 Oversized Bearings
★ Universal fit,fits all 1/16th brushless cars-multi-mounting system for M2.5 screws
★ Precision balanced rotor, smoothness for best reliability and maximum RPM
★ Stator - Super Thin (0.35mm) Laminations
★ Removable/Replaceable Rotor
★ Precision Engineered for Maximum Energy Conversion

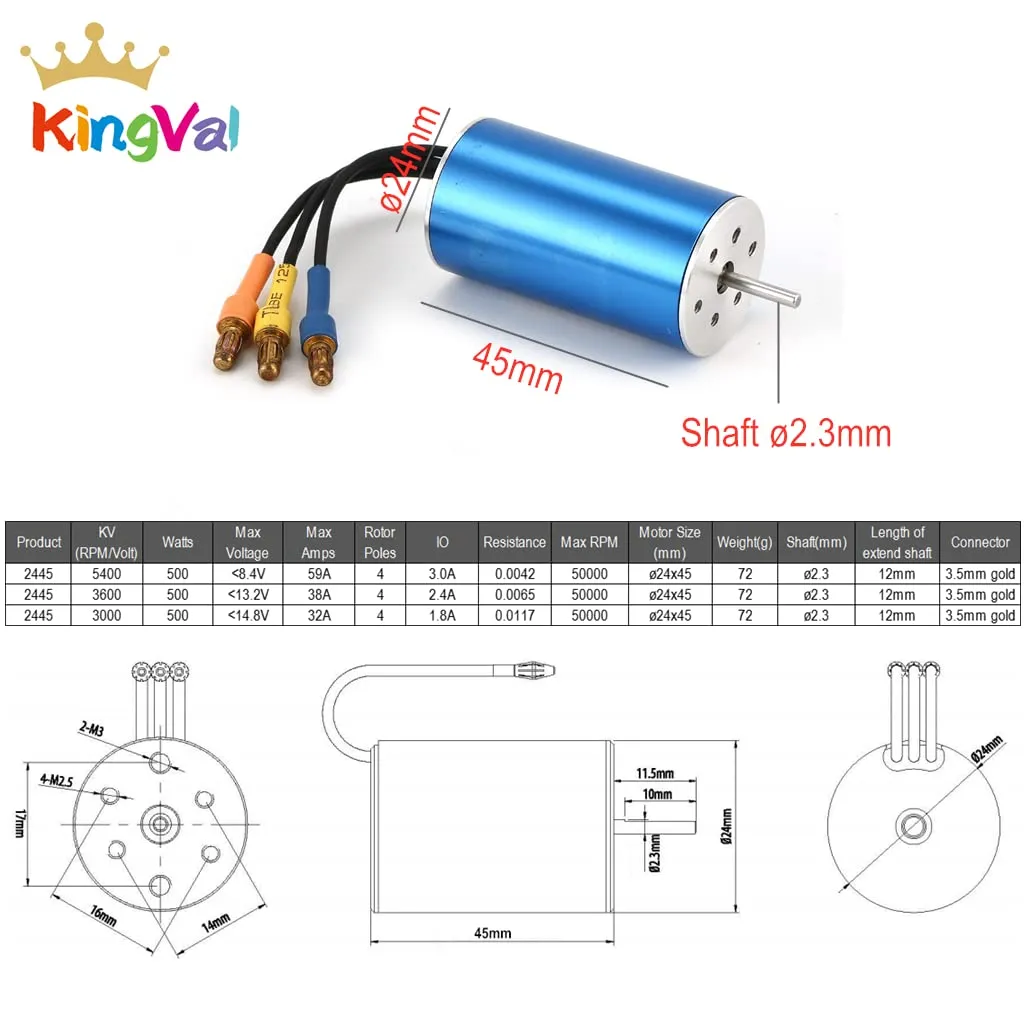

Specifications:
Brand: KingVal

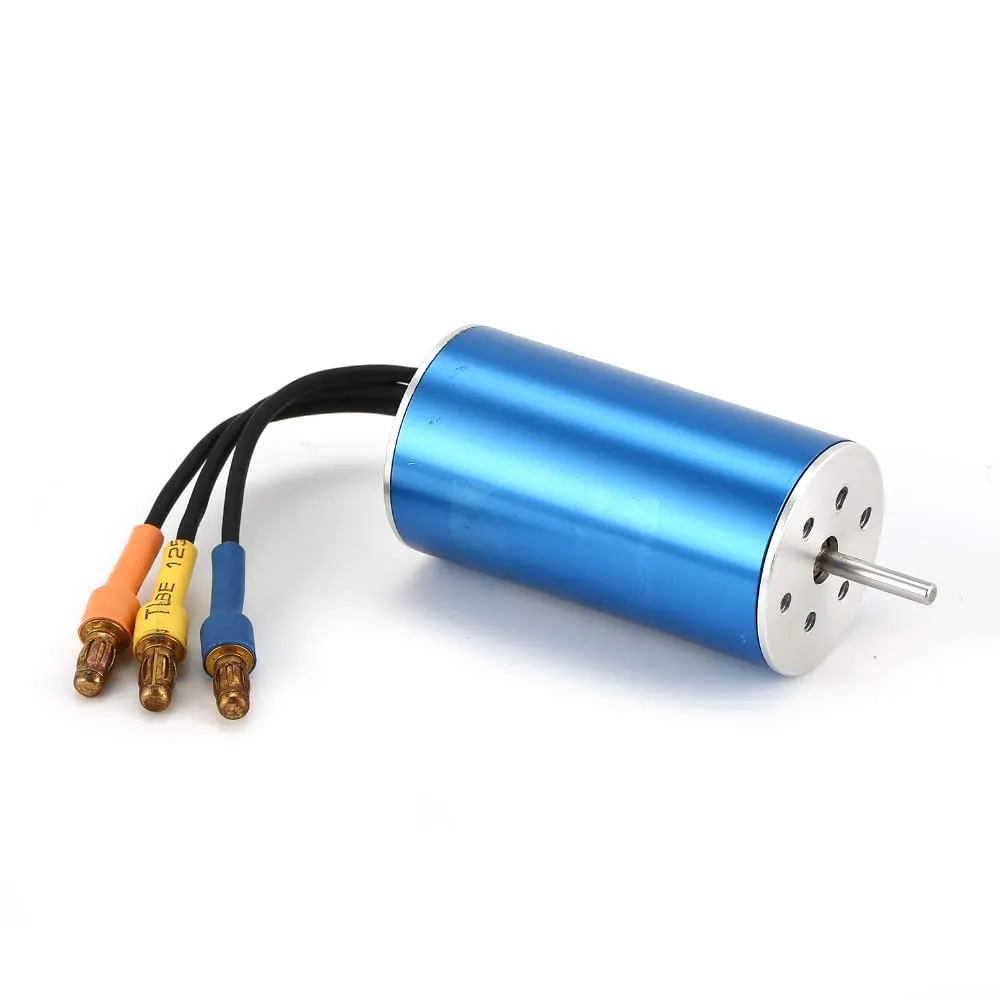

Product: 2445 Sensorless Motor
Motor Size: ø24x45mm
KV(RPM/Volt): 3000
Max voltage:<14.8V
Max Amps:32A
IO:1.8A
Resistance:0.0117
Watts: 500
Rotor Poles: 4
Max RPM: 50000
Shaft: ø2.3mm
Length of extend shaft: 12mm
Connector: 3.5mm gold Plated
N.W: 72g

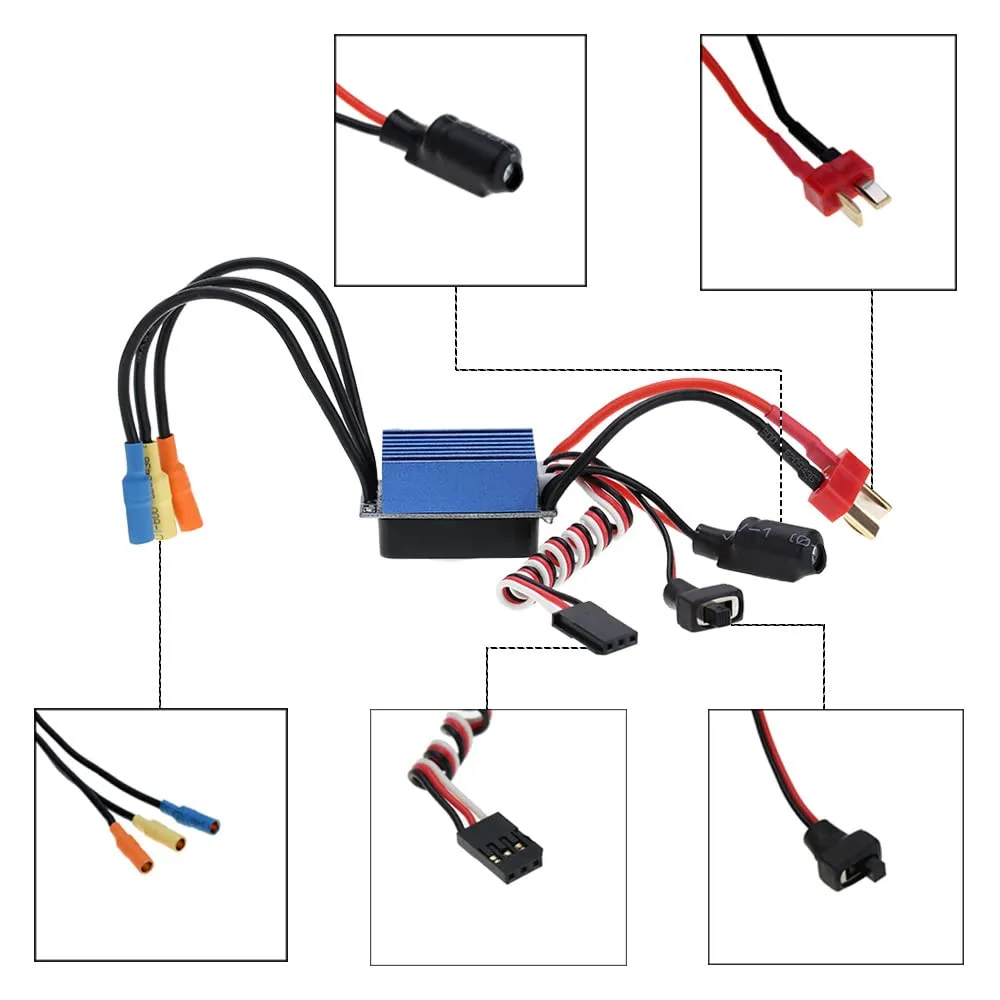

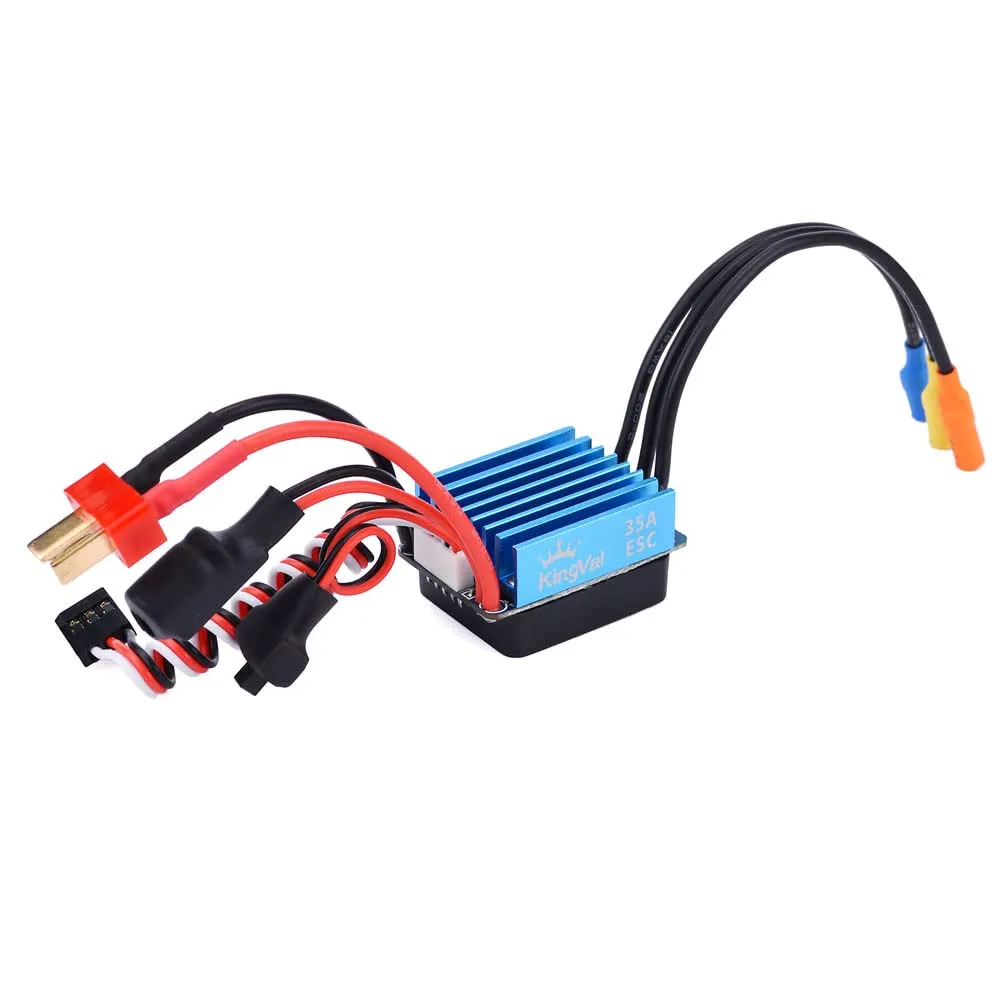

ESC Specifications:
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
Suitable Car: 1/18, 1/16, 1/14 Car
Suitable Brushless Motor: ≥12T
Resistance: 0.003ohm
Battery: 2-3 cells Lipo; 4-9 cells NiMH
BEC Output: 5V/2A(analog mode)
Dimension: 25*30*18.5mm
Weight: 33g

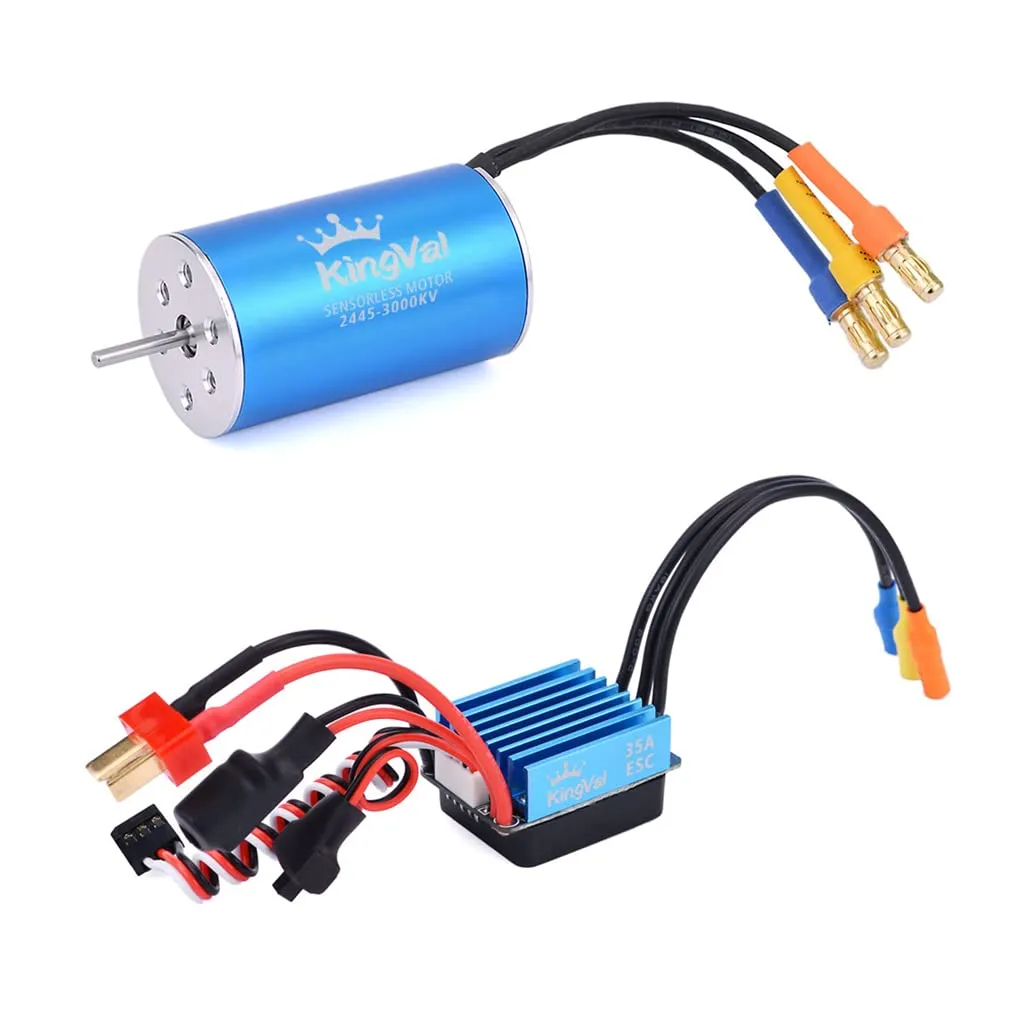

Package List:
1 x 2445 Sensorless Motor
1 x 35A Brushless ESC
- Product Dimensions : 1.77 x 0.94 x 0.94 inches; 5.64 ounces
- Date First Available : August 15, 2022
- Manufacturer : KingVal
- Country of Origin : China
