- 4 Pole 12 Slot Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
- Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5/M3 screws
- Precision balanced rotor,smoothness for best reliability and maximum RPM
Features:
★ 4 Pole 12 Slot Hi-torque Motor Design
★ CNC Machined 6061 T6 Billet Aluminum Heatsink Can
★ High Purity Copper Windings Maximizes Efficiency
★ High RPM ABEC5 Oversized Bearings
★ Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5/M3 screws
★ Precision balanced rotor,smoothness for best reliability and maximum RPM
★ Stator - Super Thin (0.35mm) Laminations
★ Removable/Replaceable Rotor
★ Precision Engineered for Maximum Energy Conversion

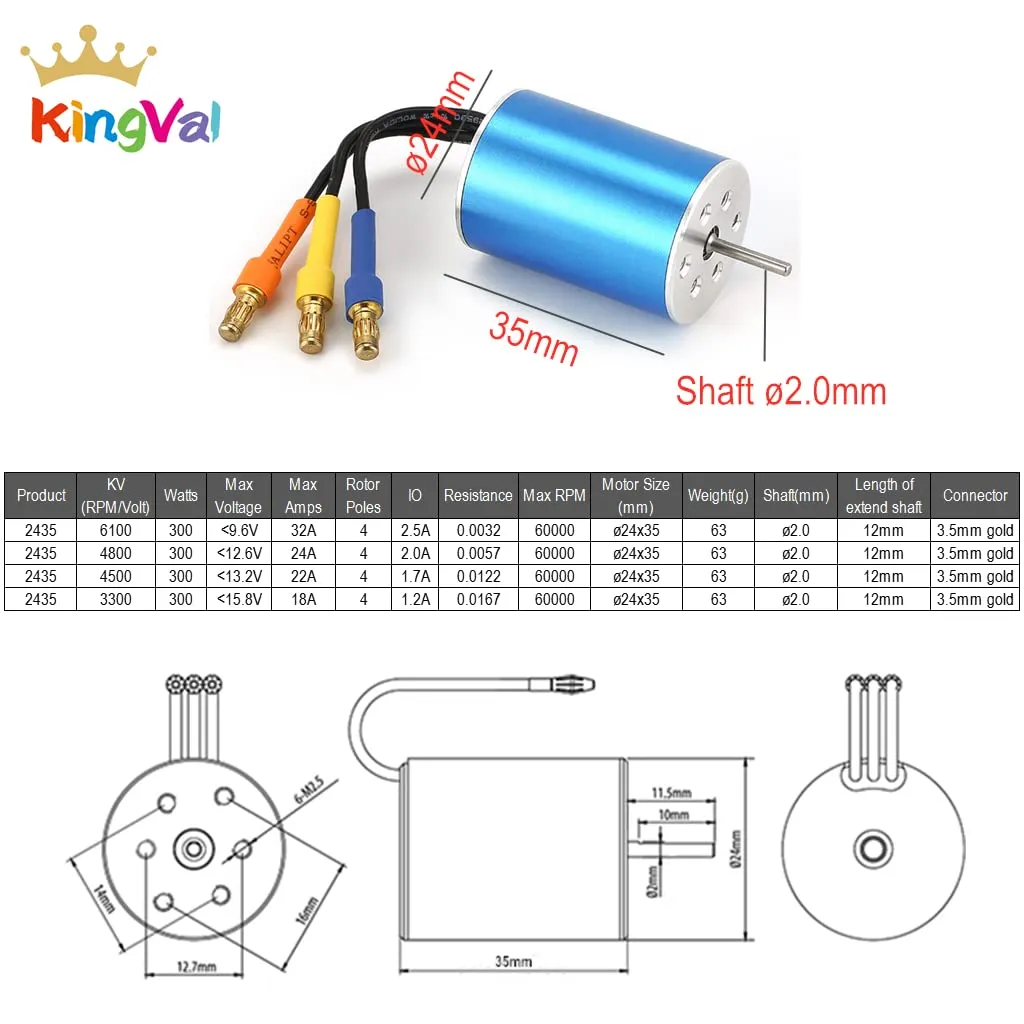

Specification:
Brand: KingVal
Product: 2435 Sensorless Motor
Motor Size: ø24x35mm
KV(RPM/Volt): 4800
Watts: 300
Max Voltage: <12.6V
Max Amps: 24A
Rotor Poles: 4
IO: 2.0A
Resistance: 0.0057
Max RPM: 60000
Shaft Diameter: 2.0mm
Length of extend shaft: 12mm

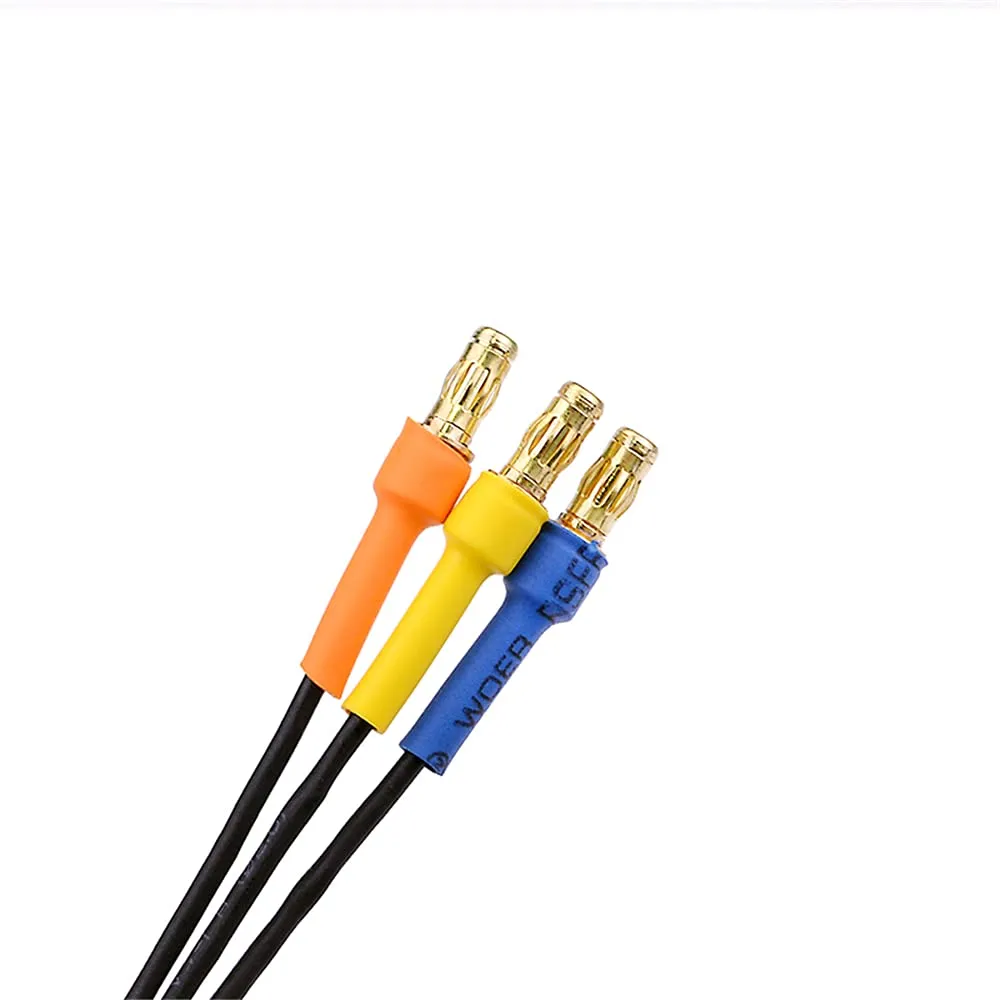

Connector: 3.5mm gold
N.W: 57g
Package List:
1 x 2435 Sensorless Motor
- Product Dimensions : 1.38 x 0.94 x 0.94 inches; 2.82 ounces
- Date First Available : July 18, 2022
- Manufacturer : KingVal
- Country of Origin : China
