- 4 Pole 12 Slot Hi-torque Motor Design.
- High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
- Universal fit, for 1:16, 1:18 2S RC racing car.
- Precision balanced rotor,smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.35mm) Laminations.
Specifications:
Name: 2435 RC Motor
Color: Red
KV(RPM/Volt): 4800KV
Watt: 300
Max RPM: 60000
Max Voltage: <13.2V
Max Amps: 22A
Rotor Poles: 4
Diameter: 24mm
Length: 34mm
Shaft: 2.0mm
Shaft Length: 12mm
Connector: 3.5mm Gold
Weight: 59g
25A ESC:
Cont. Current: 25A
Burst Current: 90A/10sec
Battery: 2 Cell Lipo / 4-6 Cell NiMh
BEC: Yes
BEC Output: 5V/1A
Power Supply Plugs: T Male
Motor Plugs: Female 3.5mm Connector
Size: 40*27*15mm
Weight: 29g
Package Information:
Package Size: 9* 6*3.5cm
Package Weight: 113g
General Box Package
Packing List:

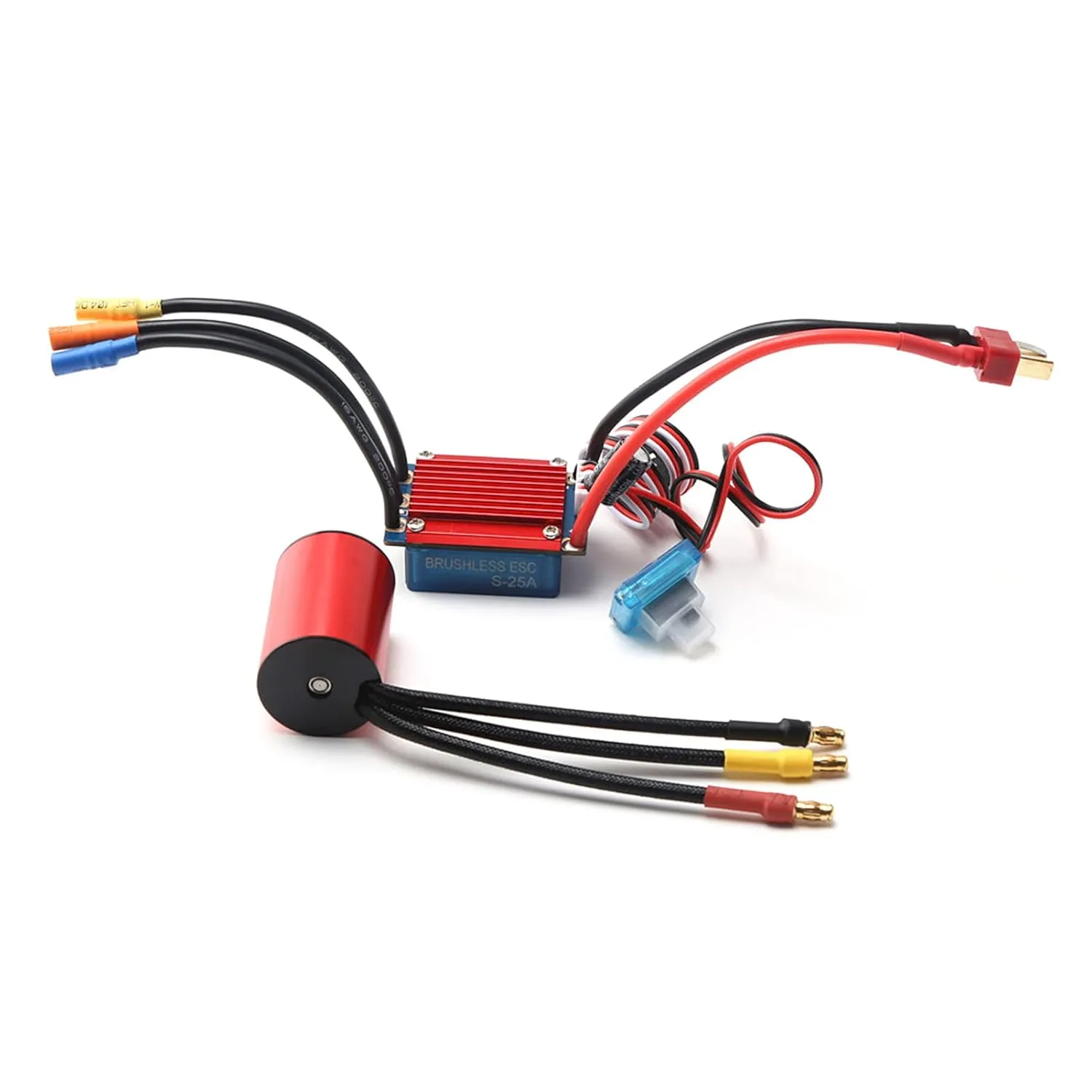

1* 4800KV Brushless Motor
1* 25A ESC
- Product Dimensions : 0.9 x 0.9 x 0.9 inches; 1.02 ounces
- Manufacturer recommended age : 14 years and up
- Date First Available : June 23, 2022
- Manufacturer : GoolRC
- Country of Origin : China
