- 125A
- Outdoor use
- For double pole full size breaker (BR2100R)
- Use (DS) hub
- Can be used for service disconnect.

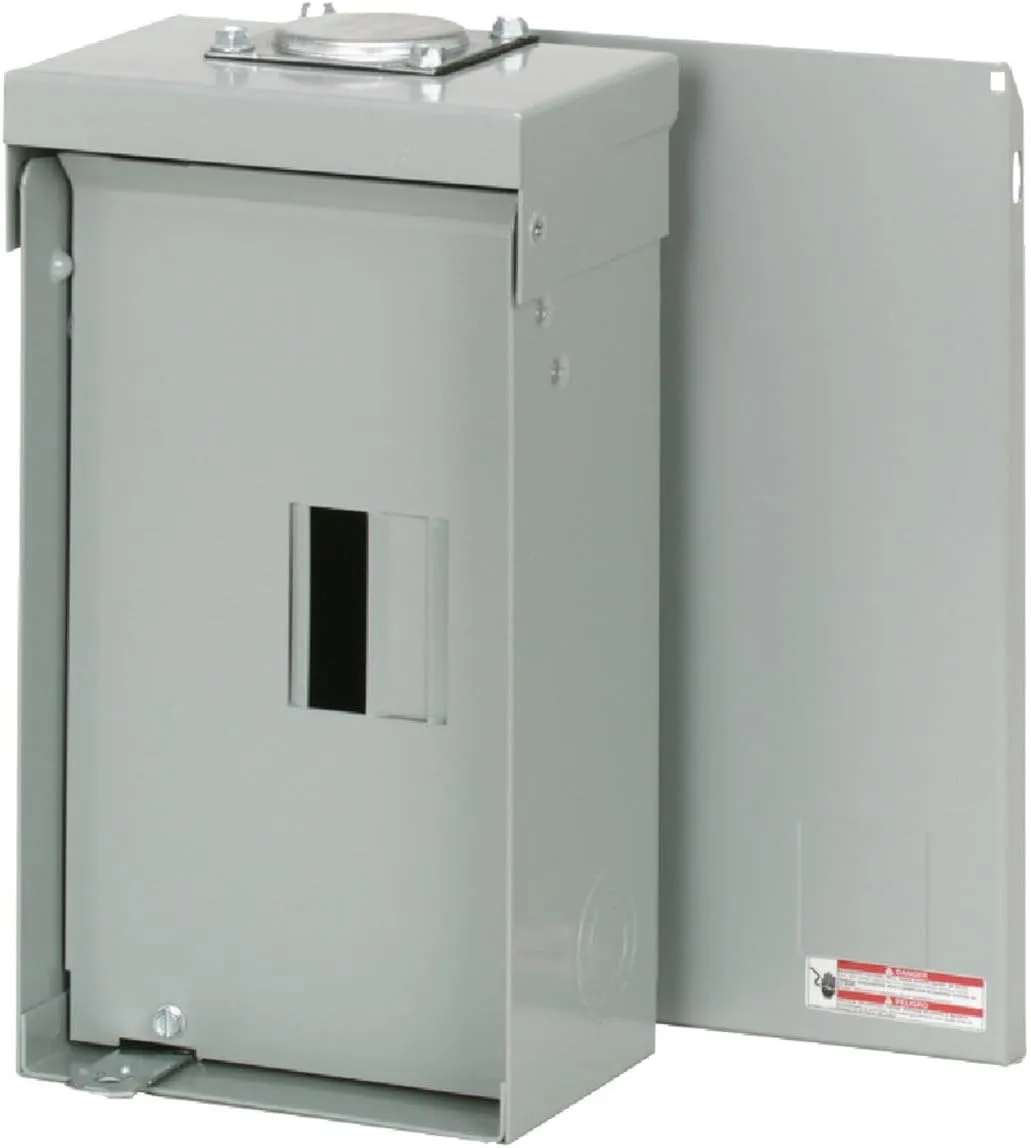

Product description
For double pole full size breaker (BR2100R). Use (DS) hub. Can be used for service disconnect. 125A Outdoor use
For double pole full size breaker (BR2100R) Use (DS) hub Can be used for service disconnect.
From the Manufacturer
Single phase, 3 wire, insulated/bondable movable neutral, 2 (1") spaces, 4 poles, 120/240 Volts AC. With closure plates, hubs and No.GBK5 or GBK520 ground bar kits (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. In accordance with NEC, suitable for use as service equipment when not more than 2 service disconnecting mains are provided or when not used as a lighting and appliance panelboard. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #14-1/0 wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 degrees for bottom feed. U.L. Listed file E8741.
