Name: 12' Tall x 5.0" Base OD x 3.0" Top OD x 0.125" Thick, Round Tapered Aluminum, Hinged Anchor Base Light Pole
SKU: 1084736

12' Tall x 5.0" Base OD x 3.0" Top OD x 0.125" Thick, Round Tapered Aluminum, Hinged Anchor Base Light Pole

$ 1277.00

$ 0.00

Save: $

Unit Shipping Cost (Required):

-- Please Select --
Qty 4+ (Free Shipping)
Qty 2-3 (+)
Qty 1 (+)

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Product Specifications

Pole Shaft - The pole shaft is extruded and spun from seamless 6063-T6 aluminum.
Pole Top - A removable top cap is provided for poles receiving drilling patterns for side-mount luminaire arm assemblies. Other pole top options include Tenon Top, Top Cap Only or Open Top which is typical when the pole top diameter matches the necessary slip-fit dimensions.
Hand Hole - A covered hand hole with hardware and grounding provision are provided.

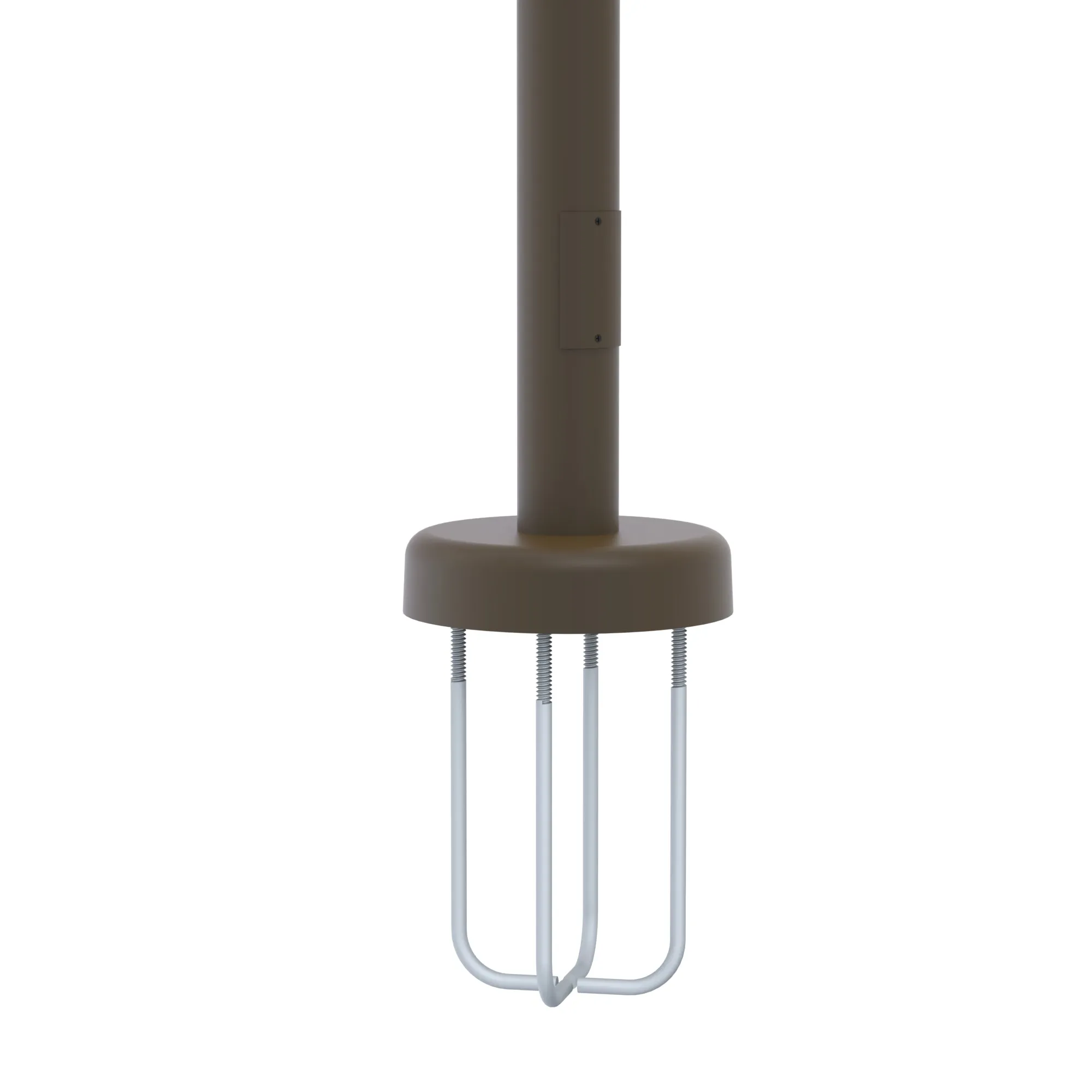

Anchor Base & Cover - The hinged base is cast from 356 alloy aluminum and supplied with an aluminum two-piece base cover. The completed pole assembly is heat-treated to a T6 temper.
Anchor Bolts - Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers. Bolts have an "L" bend on one end and are galvanized a minimum of 12" on the threaded end.
Hardware - All structural fasteners are galvanized high strength carbon steel. All non-structural fasteners are galvanized or zinc-plated carbon steel or stainless steel.
Finish - Finishes include anodized or painted. Please consult factory for special finishing colors and fixture matching options. When storing light poles outside, remove all protective wrapping immediately upon delivery to prevent finish damage.
Design Criteria - Standard EPA (Effective Projected Area) and weight values are based on Standard Commercial Criteria (with 1.3 gust factor) for side and top mounted fixtures only. Satisfactory performance of light poles is dependent upon the pole being properly attached to a supporting foundation of adequate design.
